Model A. Suitable for All Spinneret

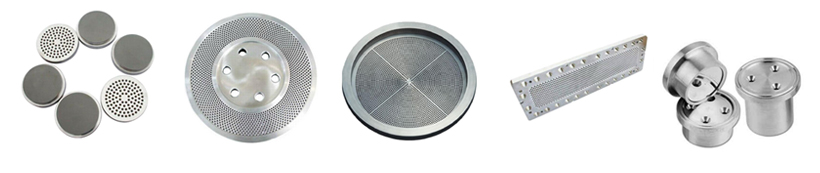

Cleaning Objects

Features:

It is using horn type ultrasonic cleaning on the Spinneret (according to the amount of cleaning, choose single or double)
Amplitude of vibration is 30 times wider than the conventional throw-in transducer type or the cleaning bath type for expanded cleaning power.
Continuous operation, special alloy has enhanced durability of the horn.

Specifications:
Model NFU-1530S NFU-1530D
Cleaning capacity 24pcs 48pcs
Horn Frequency 15KHz 15KHz
Ultrasonic Power(Horn) 4000W 4000W x 2
Power Density 15-17W/cm2 15-17W/cm2
Outline Dimension 2200×1020×1450 2200×1220×1450
Cleaning Tank Dimension 1840×480×300/320 1840×480×300/320
Control Panel Dimension 650×650×1460 650×650×1460
Horn Rectangle Rectangle
Material of Horn TC4 TC4
Power Supply 380V 50Hz 380V 50Hz
Heating Power 6KW 9KW
Working Temp. 50 degree 50 degree
Inlet DN15 DN15
Outlet DN40 DN40
Cleaning Time 2-3 hours 2-3 hours
Cleaning model X-axis travel X-axis travel
Remark:Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity in accordance with the specification of Spinneret of φ105mm.
