Combined type ultrasonic cleaning device for Circular Spinneret φ40-120mm

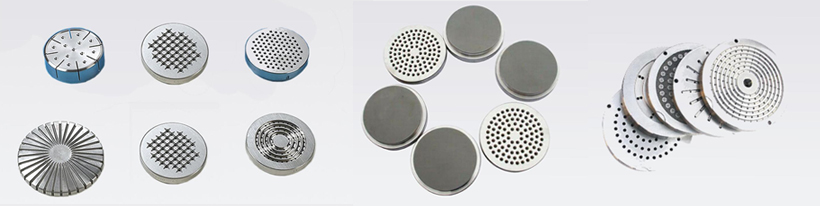

Cleaning Objects:
a. Polyester Super Microfilaments spinneret ,Shaped spinneret,Composite spinning spinneret
B. Number of holes in the 144,288 or more filament spinneret
C. Diameter of spinneret less than 0.16mm.
Cleaning Objects

Features:

The horn resonator (upper) ultrasonic combined with the fixed resonator (lower) ultrasonic;
High frequency combined with low frequency. Two types of ultrasonic cleaning system both work.
Electrical control parts: PLC controller, central & individual control.
Specifications:
Model NFU-1520S-Z NFU-1520D NFU-1520T
Cleaning capacity 28pcs 32pcs 48pcs
Horn Frequency 15KHz 15KHz 15KHz
Ultrasonic Power(Horn) 4000W 4000W x 2 4000W x 3
Power Density 15-17W/cm2 15-17W/cm2 15-17W/cm2
Fixed Frequency 20KHz 20KHz 20KHz
Ultrasonic Power(Fixed) 700W x 4 800W x 4 800W x 6
Power Density 0.5-1.0W/cm2 0.5-1.0W/cm2 0.7-1.2W/cm2
Outline Dimension 2300×1100×1450 2630×1100×1450 2630×1350×1450
Cleaning Tank Dimension 2000×550×330 2300×550×330 2300×800×330
Control Panel Dimension 650×650×1860 650×650×1860 650×650×2060
Horn Circle Circle Circle
Material of Horn TC4 TC4 TC4
Material of Fixed resonator SUS316L,Chromeplate SUS316L,Chromeplate SUS316L,Chromeplate
Power Supply 380V 50Hz 380V 50Hz 380V 50Hz
Heating Power 9KW 9KW 9KW
Working Temp. 50 degree 50 degree 50 degree
Inlet DN20 DN20 DN20
Outlet DN40 DN40 DN40
Cleaning Time 2-3 hours 1-2 hours 1-2 hours
Remark:Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity based on Spinneret of φ104mm.
Main Part:

Cleaning Method:

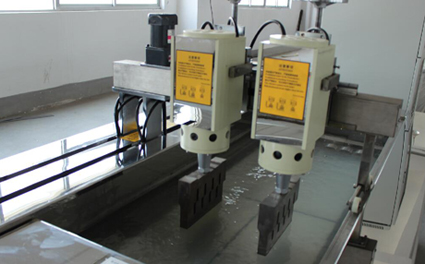

Horn Resonator & Fixed Resonator, two types of ultrasonic cleaning device both working. The horn resonator is cleaning by positioning.

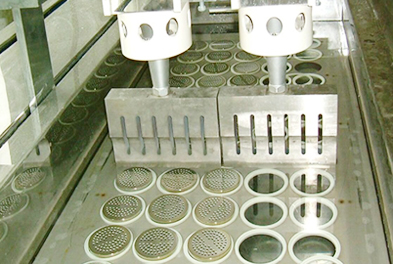

Horn resonator is installed under the upper of cleaning tank, is used to cleaning up the top surface of works.
Fixed resonator is fixed under the bottom of cleaning tank,is used to cleaning up the back side of spinneret.
Because the working surface of horn resonator is small, each spinneret is cleaned by positioning. so it is necessary to install reciprocating & Position device.
The control cabinet is used to control the cleaning device operation, display equipment running status,place the ultrasonic generator.
Generator part:
The control cabinet is used to control the cleaning device operation, display equipment running status,place the ultrasonic generator.
