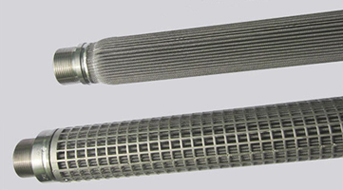

Cleaning Objects: Filter of PET, PBT, PA, R-PET, Particularly suitable for high filter precision filter.
Cleaning Objects

Features:

The rotating candle filters are clamped by double thimble bearing.
It is sure to 360 degree operation with no dead angle when ultrasonic moving.
Compound type: The Horn type (upper) ultrasonic combined with the Immersion type (lower) ultrasonic;
High frequency combined with low frequency. Two types of ultrasonic cleaning system both working.
Z travel mode: the Horn type (upper) ultrasonic is moved in Z travel and cleans candle filter one by one.
Specifications:
Model NFU-1525S-Z NFU-1525D-Z NFU-1520D-Z
Cleaning capacity 3pcs 6pcs 6pcs
Horn Frequency 15KHz 15KHz 15KHz
Ultrasonic Power(Horn) 4000W 4000W x 2 4000W x 2
Power Density 15-17W/cm2 15-17W/cm2 15-17W/cm2
Fixed Frequency 25KHz 25KHz 25KHz
Ultrasonic Power(Fixed) 1500W x 2 1500W x 4 2100W x 4
Power Density 0.5-1.0W/cm2 0.5-1.0W/cm2 0.7-1.5W/cm2
Outline Dimension 2200×1020×1450 2200×1220×1450 2200×1220×1450
Cleaning Tank Dimension 1840×480×350 1840×680×350 1840×680×350
Control Panel Dimension 650×650×1860 650×650×1860 650×650×1860
Horn Rectangle or Circle Rectangle or Circle Rectangle or Circle
Material of Horn TC4 TC4 TC4
Material of Fixed resonator SUS316L,Chromeplate SUS316L,Chromeplate SUS316L,Chromeplate
Power Supply 380V 50Hz 380V 50Hz 380V 50Hz
Heating Power 6KW 6KW 6KW
Working Temp. 50 degree 50 degree 50 degree
Inlet DN15 DN15 DN15
Outlet DN40 DN40 DN40
Cleaning Time 1-2 hours 1-2 hours 1-2 hours
Remark: Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity based on filter of φ60×1215/1239mm.
Main Part:

Cleaning method:

Horn Resonator & Fixed Resonator, two types of ultrasonic cleaning device both working. The horn resonator is cleaning by positioning(X/Y axis)and the filter is rotating at all the cleaning time.

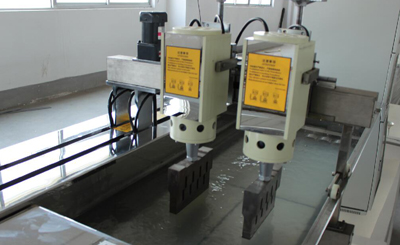

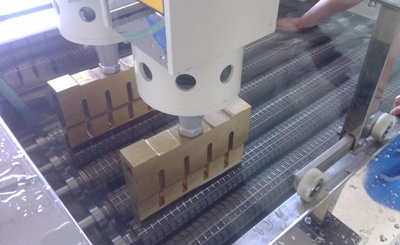

Horn resonator is installed under the upper of cleaning tank,is used to cleaning up the top surface of works.
Fixed resonator is fixed under the bottom of cleaning tank,is used to cleaning up the back side of filter.
The control cabinet is used to control the cleaning device operation, display equipment running status,place the ultrasonic generator. Integrated self-supporting,Installed near the equipment.
Optional Configuration:
This Water Resonance System is composed of the WRS main unit, control panel, liquid inlet and outlet, strainer,power cable and remote control cable.
This system is designed to produce water resonance to reform the quality of a liquid which is circulated by absorbing and discharging.
