Cleaning Objects

1Auto High Pressure Washer(New)
Cleaning Objects: Candle Filter
External washing nozzle is used to cleaning up the surface of filter
The telescopic internal flushing nozzle is deep inside the filter, and the filter is cleaned from inside to outside.
2. Auto High Pressure Washer
Cleaning Objects: Candle Filter
External washing nozzle is used to cleaning up the surface of filter
The fixed internal flushing nozzle is cleaning the filter from inside to outside.
3. Manual High Pressure Washer
Cleaning Objects: Candle Filter
Auto High Pressure Washer I AWS-series
Cleaning Objects: Candle Filter
Main function:
High-pressure cleaning machine is used to remove TiO2 and alkali remaining in the filter. System according to the procedures set automatically cleaning filter, the internal washing nozzle is inserted into the filter for cleaning.
It has high cleaning efficiency, and good cleaning effect.
There is no cleaning blind area, can effectively reduce the number of workers and reduce labor intensity.
It is an important part of the cleaning process.
Cleaning stage:
Installing the filter---Internal washing ---External washing---End---Remove the filter;
Installing the filter:Fixed the candle filter on rotary support;
Select the internal and external cleaning times on the control cabinet, start automatic operation;
Filter rotation:The filter element has been rotated during cleaning stage;
High pressure internal washing:The high-pressure internal spray gun moves up and down with the reciprocating device, and the inner part of the filter is flushed, until the end of time.
High pressure external washing:The high-pressure external spray gun moves up and down with the reciprocating device,
Until the end of time。
End:end of the cleaning process
Remove the filter
Remark:The running time of the equipment, the speed of the spray gun moving, the flushing times of the internal and external washing are controlled by the touch screen。
Cycle Time
Step Time 5 10 15 20 25 30 35 40 45 50
Set the Filter 5min

Internal washing 20min

External washing 20min

Take out the filter 5min
Technical parameter:
Model AWS-4S AWS-6S
Cleaning ability φ600×1215mm 4pcs φ600×1215mm 6pcs
Outline dimension 1430×1000×3630 1630×1000×3630
Dimension of control cabinet 900×400×700 900×400×700
Dimension of external pump 1200×1150×930 1680×1150×930
Dimension of internal pump 250×210×1215 250×210×1215
Dimension of operation ladder 2100×1000×2600 2100×1000×2600
Control cabinet position Integrated,located on side of equipment
Power supply 17KW 25KW
Cleaning Time 40min 40min
Pressure of external pump 8-20MPa 8-20MPa
Flow of external pump 20L/min×2 30L/min×2
Power of external pump 7.5KW×2 7.5KW×3
Brand of external pump Italy Italy
Pressure of internal pump 1.6Mpa 1.6Mpa
Flow of internal pump 60L/min 60L/min
Power of internal pump 4KW 4KW
Brand of internal pump China China
Control mode PLC+Touch screen PLC+Touch screen
Cleaning mode Internal and external washing Internal and external washing
Driver of Reciprocating device Servo Drive Servo Drive
Reciprocating speed 120-240mm/min 120-240mm/min
Rotational speed 7rpm 7rpm
Main Parts



Auto High Pressure Washer II AWS-series
Cleaning Objects: Candle Filter
Main function:
High-pressure cleaning machine is used to remove TiO2 and alkali remaining in the filter .System according to the procedures set automatically cleaning filter,The fixed internal flushing nozzle flushing filter inside.
It has high cleaning efficiency, and good cleaning effect,
There is no cleaning blind area, can effectively reduce the number of workers and reduce labor intensity,
It is an important part of the cleaning process.
Cleaning stage:
Installing the filter---Internal washing---External washing---End---Remove the filter;
Installing the filter:Fixed the candle filter on rotary support;
Select the internal and external cleaning times on the control cabinet, start automatic operation;
Filter rotation:The filter element has been rotated during cleaning stage;
High pressure internal washing:The high-pressure internal spray gun flushes the filter inside, until the end of time.
High pressure external washing:The high-pressure external spray gun moves up and down with the reciprocating device,
Until the end of time。
High pressure internal washing:The high-pressure internal spray gun flushes the filter inside, until the end of time
End:end of the cleaning process
Remove the filter
Remark:The running time of the equipment, the speed of the spray gun moving, the flushing times of the internal and external washing are controlled by the touch screen。
Cycle Time
Step Time 5 10 15 20 25 30 35 40 45 50
Set the Filter 5min

Internal washing 5min

External washing 20min

Internal washing 20min

Take out the filter 5min

Technical parameter:
Model AWS-4 AWS-6
Cleaning ability φ600×1215mm 4pcs φ600×1215mm 6pcs
Outline dimension 1430×1000×2350 1630×1000×23450
Dimension of control cabinet 900×400×700 900×400×700
Dimension of external pump 1200×1150×930 1680×1150×930
Dimension of internal pump 250×210×1215 250×210×1215
Control cabinet position Integrated,located on side of equipment
Power supply 17KW 25KW
Cleaning Time 30min 30min
Pressure of external pump 8-20MPa 8-20MPa
Flow of external pump 20L/min×2 30L/min×2
Power of external pump 7.5KW×2 7.5KW×3
Brand of external pump Italy Italy
Pressure of internal pump 1.0Mpa 1.0Mpa
Flow of internal pump 200L/min 200L/min
Power of internal pump 5.5KW 5.5KW
Brand of internal pump China China
Control mode PLC+Touch screen PLC+Touch screen
Cleaning mode Internal and external washing Internal and external washing
Driver of Reciprocating device Servo Drive Servo Drive
Reciprocating speed 120-240mm/min 120-240mm/min
Rotational speed 7rpm 7rpm

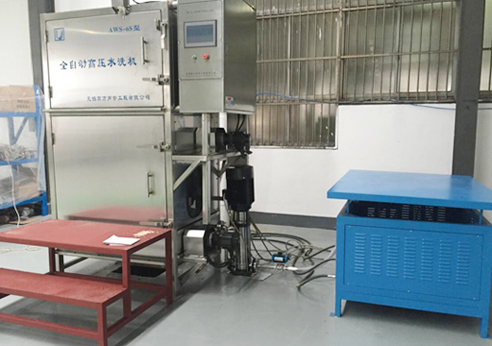

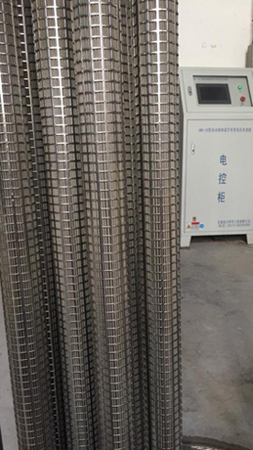

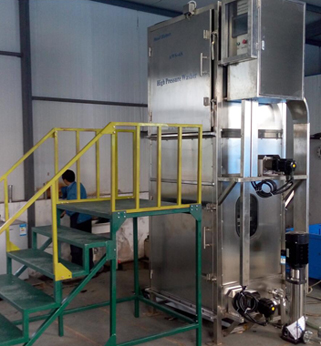

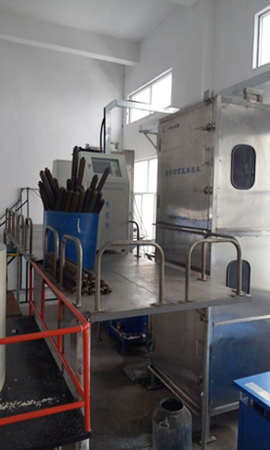

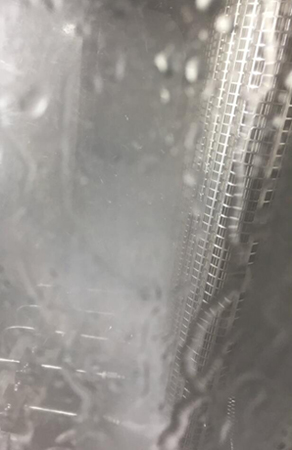

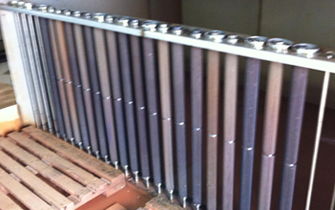

Photo:
